Samjung WowBoard
WowBoard steel pallet is used for high density brick and block production. Surface of the pallet is specklessly smooth and leveled, and it yields excellent vibration transmission.
Watch video
InquiryManufacturing pallet for high strength bricks and blocks

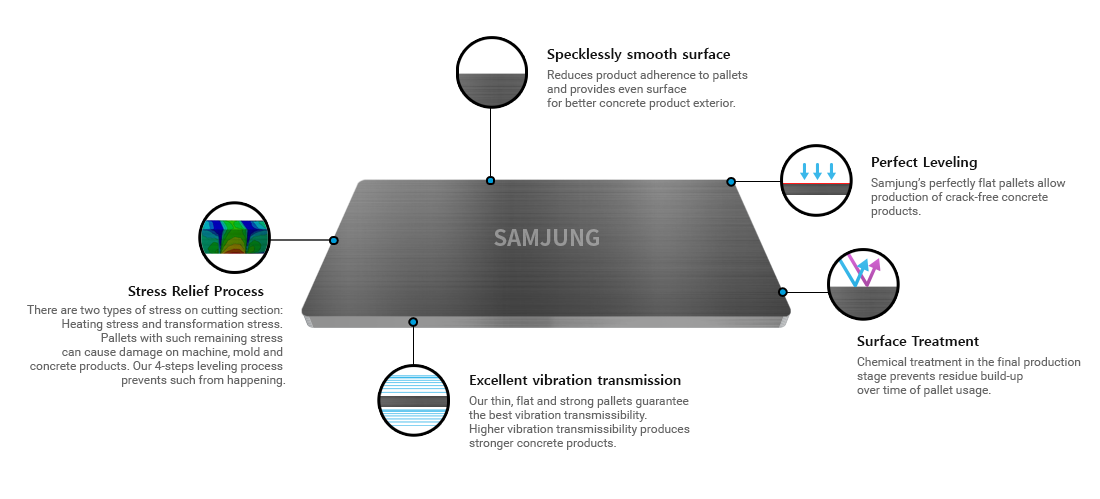

Strengths

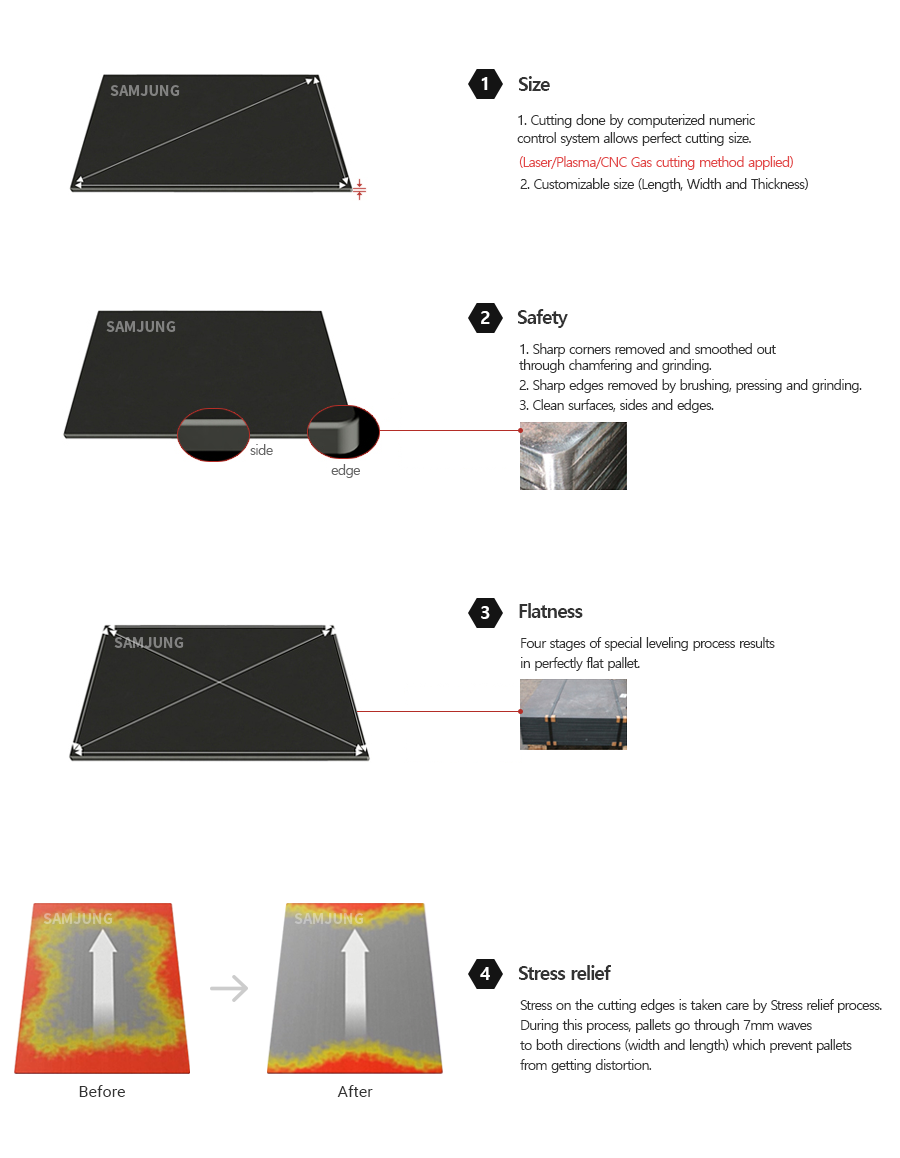

Major features

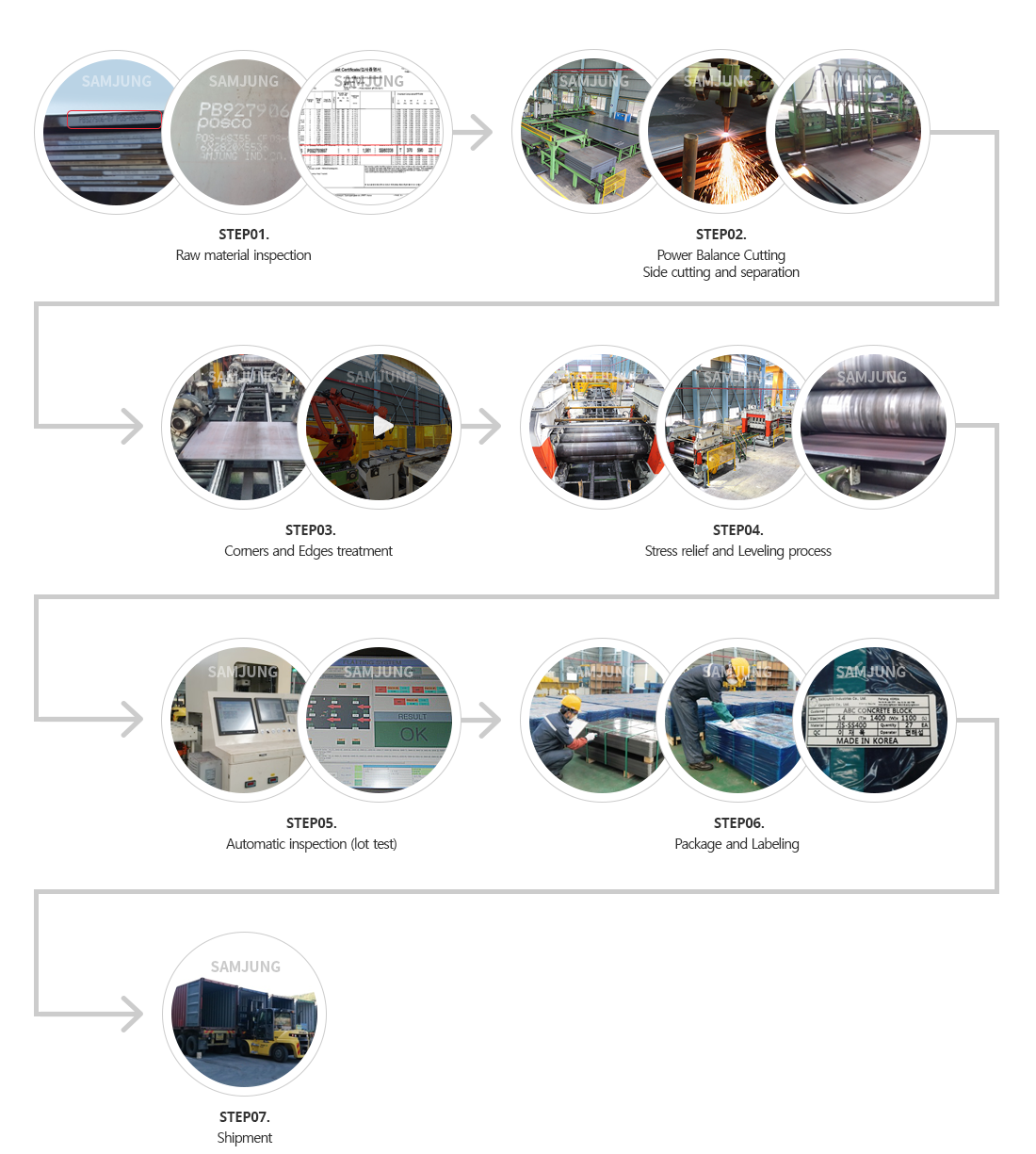

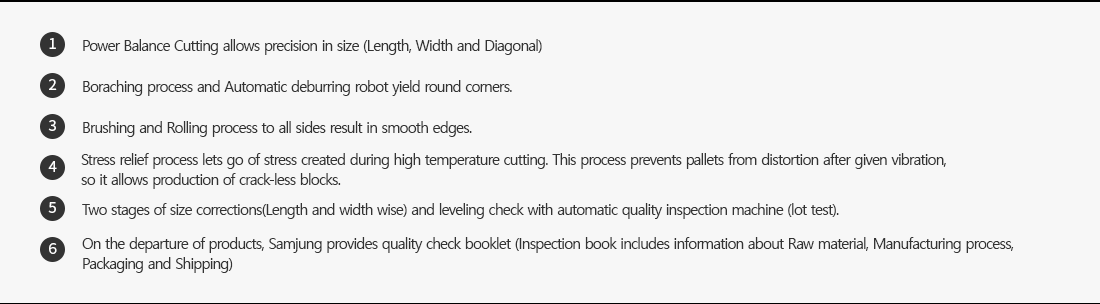

Manufacturing process
Flatness(A)

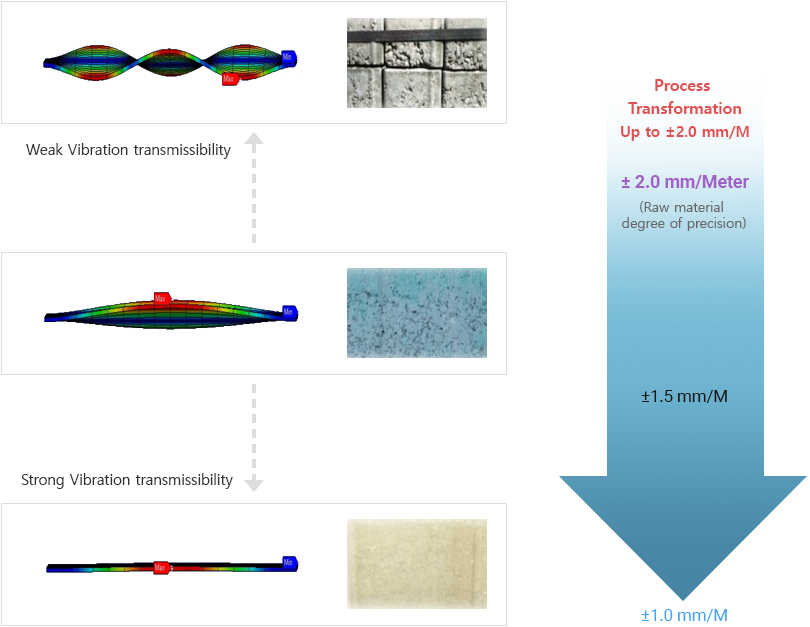

Vibration transmissibility ∝ Contact surface
Consulting service for optimal thickness computation

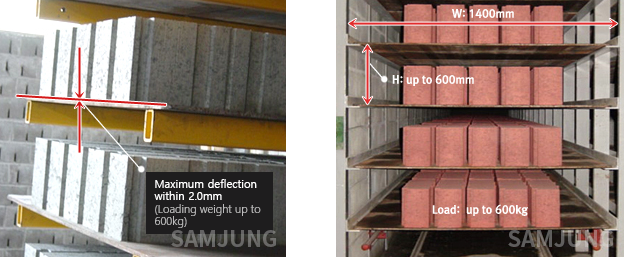

Product : Curb Stone
- Loading weight : up to 600kg/up to pallet
- Pallet size : 1400x1400mm
Vibration transmissibility ∝ Contact surface
| Pallet size (WidthXLengthmm) |
Product | Loading weight | material | Steel grade(mm) | Maximum Deflection(mm) |
|---|---|---|---|---|---|
| 1400 X 1000 | Curb Stone | Up to; 600kg | KS SS400 DIN St 44.2 |
15 | 1.987 |
| 16 | 1.537 | ||||
| 18 | 1.377 | ||||
| KS SS490 DIN St 50.2 DIN St 52.3 |
15 | 1.915 | |||
| 16 | 1.467 | ||||
| 18 | 1.328 |
Specification
| NO | Description | Samjung | Competitor |
|---|---|---|---|
| 1 | Leveling difference | Under 1.0/1,000(mm) | Under ±2.0/1,000(mm) |
| 2 | Width and Length difference | Under ± 1.0mm | Under ±2.0mm |
| 3 | Diagonal difference | Under 3.0mm | Under ±5.0mm |
| 4 | Maximum deflection upon loading | Under 2.0mm (600kg loaded on pallets with 18mm thickness) |
Characteristics
| Description | Steel pallet |
|---|---|
| Durability | Long lasting |
| Waste creation | None (Recyclable) |
| When dispose | Partial capital collection |
| Environmental harm | None |
| Product Strength | Excellent compare to wood and plastic |
| Block strength | Excellent compare to wood and plastic |
| Block surface | Excellent compare to wood and plastic |
| Elastic modulus | 200 GPa > [wood and plastic] |
| Vibration transmissibility | High > [wood and plastic] |
