Product

Samjung Move the Earth!

We Members work together and contribute to offer the best quality products in a timely manner.

WowBoard Alpha

WowBoard Alpha is light weighted but strong and excellent in vibration transmission. It is highly recommended for large block manufacturing.

Characteristics

  • Super light weighted. Customizable in size.
  • High vibration transmissibility.
  • Damping removes remaining vibration and excessive noise.
  • Made with Samjung exclusive highly corrosion resistant steel (POS1006MA).
  • Rigid structure prevents deflection in rack condition.

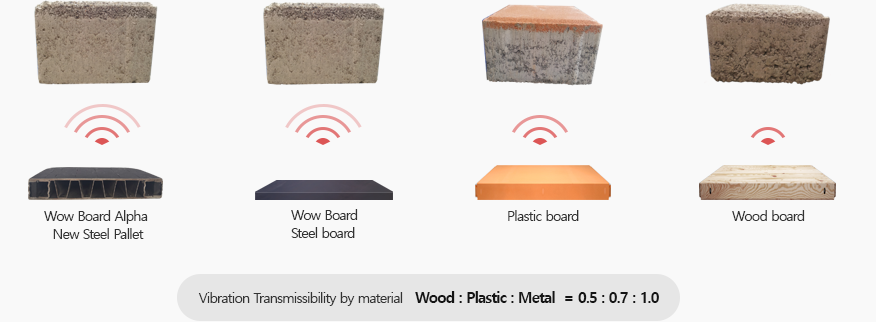

Vibration Transmissibility

Vibration transmissibility of WowBoard Alpha is as excellent
as Solid pallet (Samjung WowBoard)

If produce the same concrete block,
the weight is heavier > Stronger blocks

In comparison to Wood and Plastic board,
WowBoard Alpha is greater in vibration transmissibility.

Numerous tests completed
by large scale block manufacturing machines

Major Characteristics

주요특징표

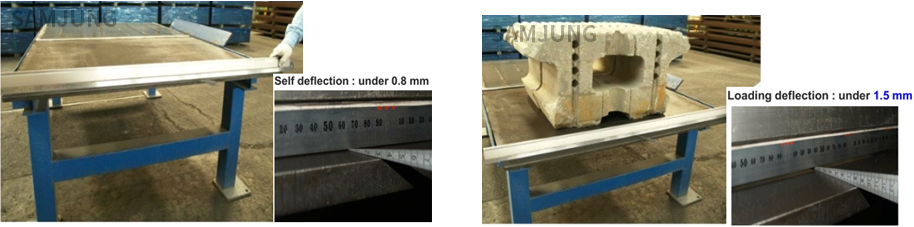

  Self deflection 24 hours loaded with 600kg
Samjung Wow Board
(solid steel pallet)
14T X 1400 X 1300
Wow Board Alpha
(new steel pallet)
31H X 1400 X 1300

Welding strength test

Parent metal laser welding method > CO2 welding

Finishing and Leveling Inspection Results

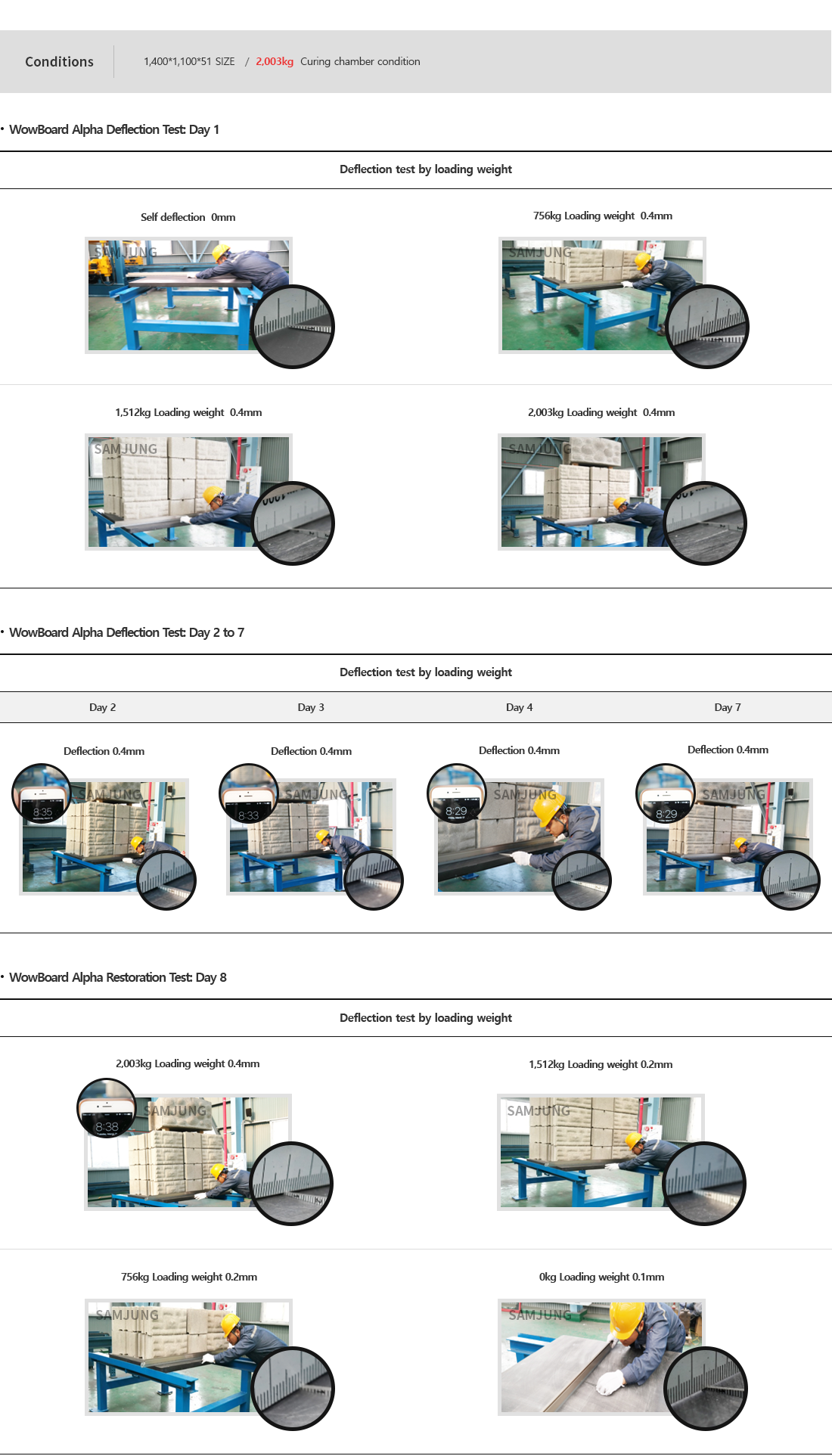

Deflection test results

처짐테스트결과
